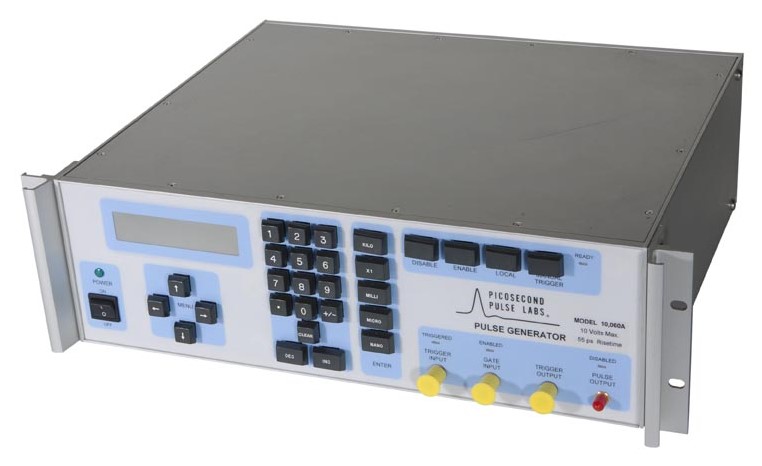

Picosecond Pulse Labs 10050 Pulse Generator

Configuration Information:

Pulse amplitude:10 V fixed
Rise times: 45 ps – 65 ps
Pulse duration: 100 ps – 10 ns
Pulse types: Single shot, or 1 Hz to 100 kHz repetition rate

RF connectors for output: SMA (f)

Product Description:

The PSPL10000 Series Pulse Generators offer premium signal integrity with convenient front panel or computer control. The high voltage outputs have fast edge rates, smooth transitions and minimal overshoot & ringing.
Adjustable output levels are obtained using internal step attenuators, ensuring consistent signal shape at all settings. The outputs are designed for a 50 Ω impedance, but can safely drive any load from a short circuit to
an open.

View the Datasheet
