Keysight M8190A & M8196A Arbitrary Waveform Generator

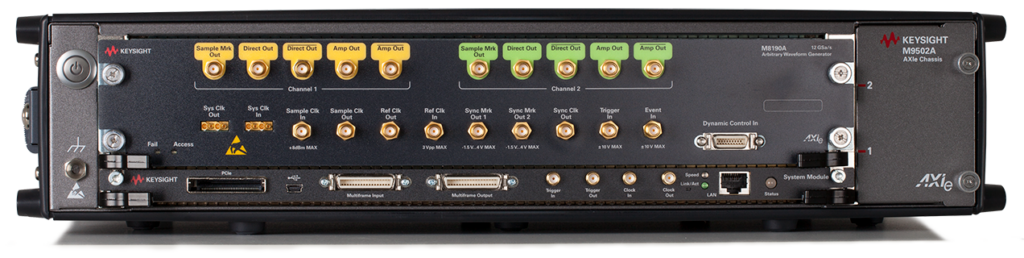

M8190A:

Keysight’s M8190A – A Keysight AWG is the source of greater fidelity, delivering high resolution and wide bandwidth

Configuration Information:

Analog Bandwidth: 5GHz
RF connectors for output: SMA (f)

Precision AWG with two DAC settings
–14-bit resolution up to 8 GSa/s
–12-bit resolution up to 12 GSa/s

Sample rate: 125 MSa/s – 8/12 GSa/s

Spurious-free-dynamic range: up to 90 dBc (typ.)

Harmonic distortion (HD): up to –72 dBc (typ.)

Licenses & Options:

Hardware supplied license, 002, 02G, 12G, SEQ, DUC

View the Datasheet

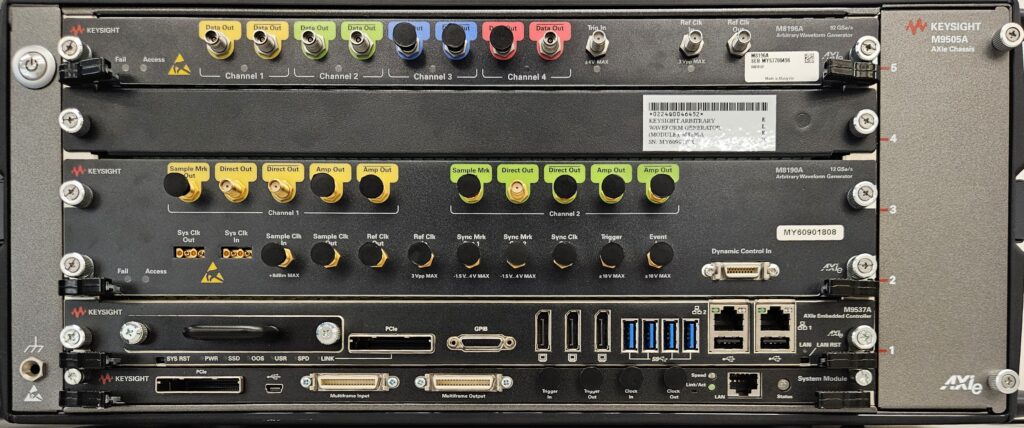

M8196A:

High speed arbitrary wave generator with up to 92 GSa/s sample rate supporting signals up to 64 GBaud on 4 channels in a 1-slot AXIe module

Configuration Information:

Analog Bandwidth: 32GHz
RF connectors for output: 2.4mm (f)

Sample rate: 92Gsa/s

Licenses & Options:

Hardware supplied license, 002

View the Datasheet
