Configuration Information:
Frequency range output: 250kHz to 44GHz
RF connector for output: 2.4 mm (m)
2.4 mm connectors are mechanically compatible with 1.85 mm connectors. They cannot mate with SMA, 3.5-mm and 2.92-mm without the use of precision adapters.
Options:
009 Removable Compact Flash Drive,
016 Wideband Differential IQ Inputs,
1E1 Mechanical Attenuator (STD),
1EU High Output Power (STD),
544 44 GHz Frequency,
602 Digital Bus Baseband Gen (64 MSample),
HEC External Baseband VCO Clock (STD),
UNU Standard Pulse Modulation,
U06 R2C Core FW Enhancement
For any measurements higher than 26.5 GHz, users have to bring their own cables and adapters.
Product Description:

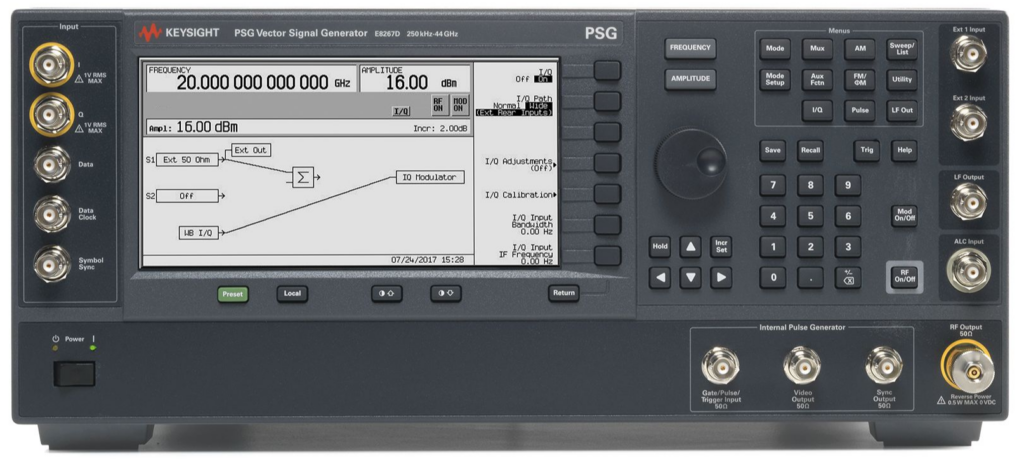

The Keysight E8267D is a fully synthesized signal generator with high output power, low phase noise, and I/Q modulation capability.
View the Datasheet
