Configuration Information:
Frequency range output: 10MHz to 26.5GHz
Number of ports: 4
RF input connectors: 3.5 mm (m)
Options:
423 4-port, configurable test set, second
source, source attenuators, receiver attenuators,
bias tees, combiner, mechanical switches
UNY Enhanced low phase noise performance
N5242B-029 Add noise receiver to 26.5 GHz
S93083B Vector and scalar mixer/converter
measurements

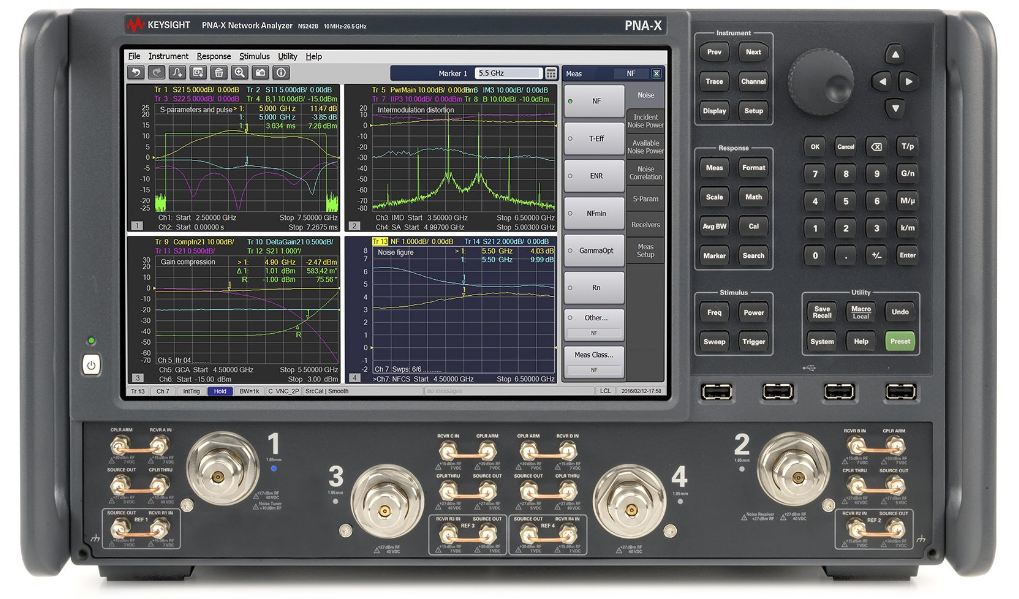

The PNA-X is a four-port vector network analyzer which can operate up to 26.5 GHz. It features a combination of two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points.
The PNA-X offers many features and shares the same platform as the PNA series of vector network analyzer, while reducing cost and complexity.
Available as a measurement service. This analyzer drives our thin film dielectric measurements with the QWED split-post resonator, and our S-parameter and system-level testing up to 26.5 GHz.
