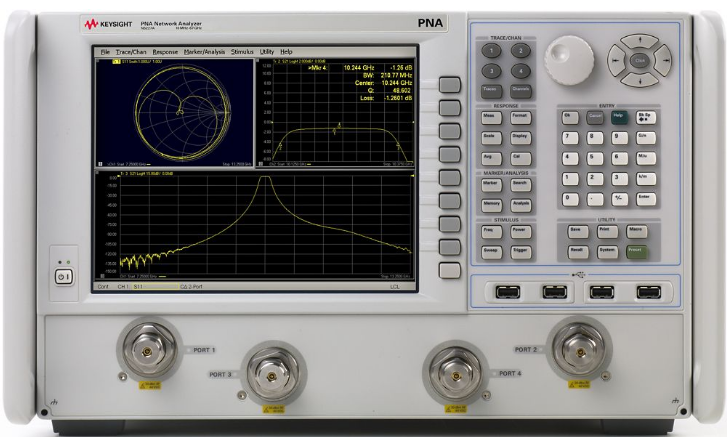

Keysight N5227A PNA Network Analyzer – 67 GHz

Configuration Information:

Number of ports: 4-port
Frequency range: 10 MHz to 67GHz
RF connectors for Inputs: 1.85 mm (m)



Options:
010, 020, 080, 118, 419, P04

This VNA is dedicated to the Anechoic Chamber for measurements.

2.4 mm connectors are mechanically compatible with 1.85 mm connectors. They cannot mate with SMA, 3.5-mm and 2.92-mm without the use of precision adapters.

The Keysight N5227A PNA Network Analyzer is a high-precision instrument renowned for its exceptional performance in RF and microwave measurements. This versatile analyzer covers an extensive frequency range, making it suitable for a wide array of applications, from research and development to production testing.

Key features of the N5227A include its impressive frequency coverage, reaching up to 67 GHz. With this expansive range, it excels in characterizing active and passive components with utmost accuracy. The analyzer boasts a remarkable dynamic range and precision, ensuring reliable and consistent results in demanding measurement scenarios.

View the Datasheet
